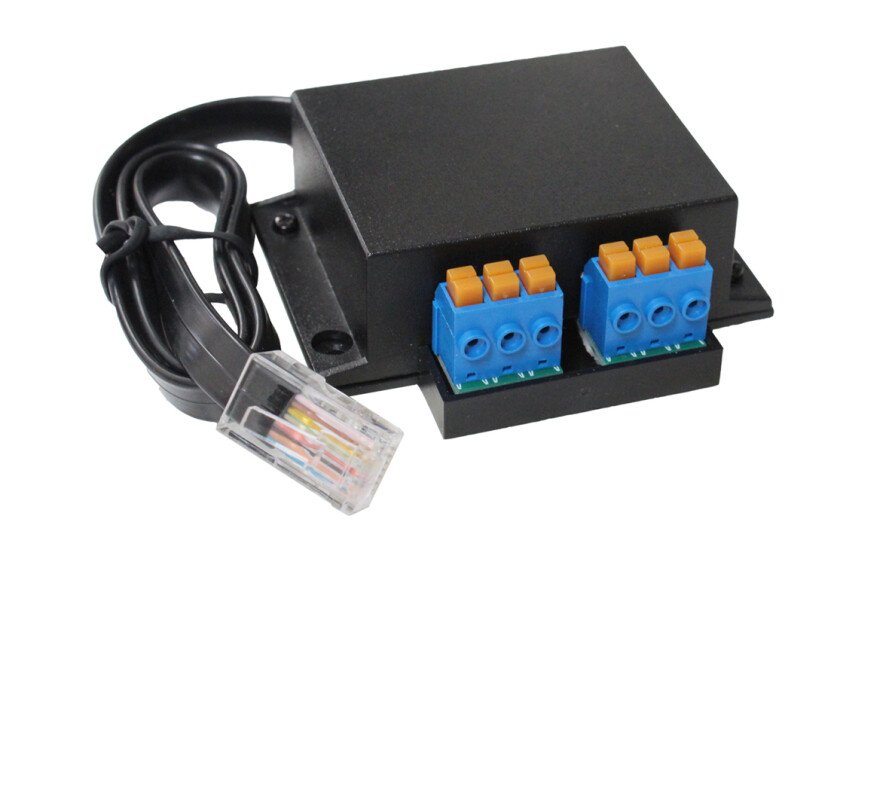

Mit dieser Schalteinheit können die Wechselrichter der PurePower(Plus)-Serie mittels unterschiedlicher Signalarten fernbedient werden.
Folgende Funktionen sind möglich:

- Einschalten durch potentialfreier Kontakt
- Ausschalten mit potentialfreier Kontakt
- Einschalten durch Potentialkontakt 5-32V
- Ausschalten met Potentialkontakt 5-32V
- Zusätzlicher Signalausgang (z. B. Lampe/Summer oder Schaltkontakt)

Der PPR-2 kann einfach an den „Remote“-Ausgang des Wechselrichters angeschlossen werden. Die gewünschten Funktionen können Sie selbst anhand der Anschlüsse am Gehäuse bestimmen.
Hinweis: nur für die PurePower- und PurePowerPlus Serie geeignet! Gilt für alle Modelle ab 600 Watt sowohl bei 12 VDC als auch bei 24 VDC.


Spezifikationen

Artikelnr.SpanningAfmetingenGewicht
PPR-212/24Vdc6,8x5,7x2 cm30 gr

Downloads

NL-ENG-DU- Manual PPR-2.pdf > Download
